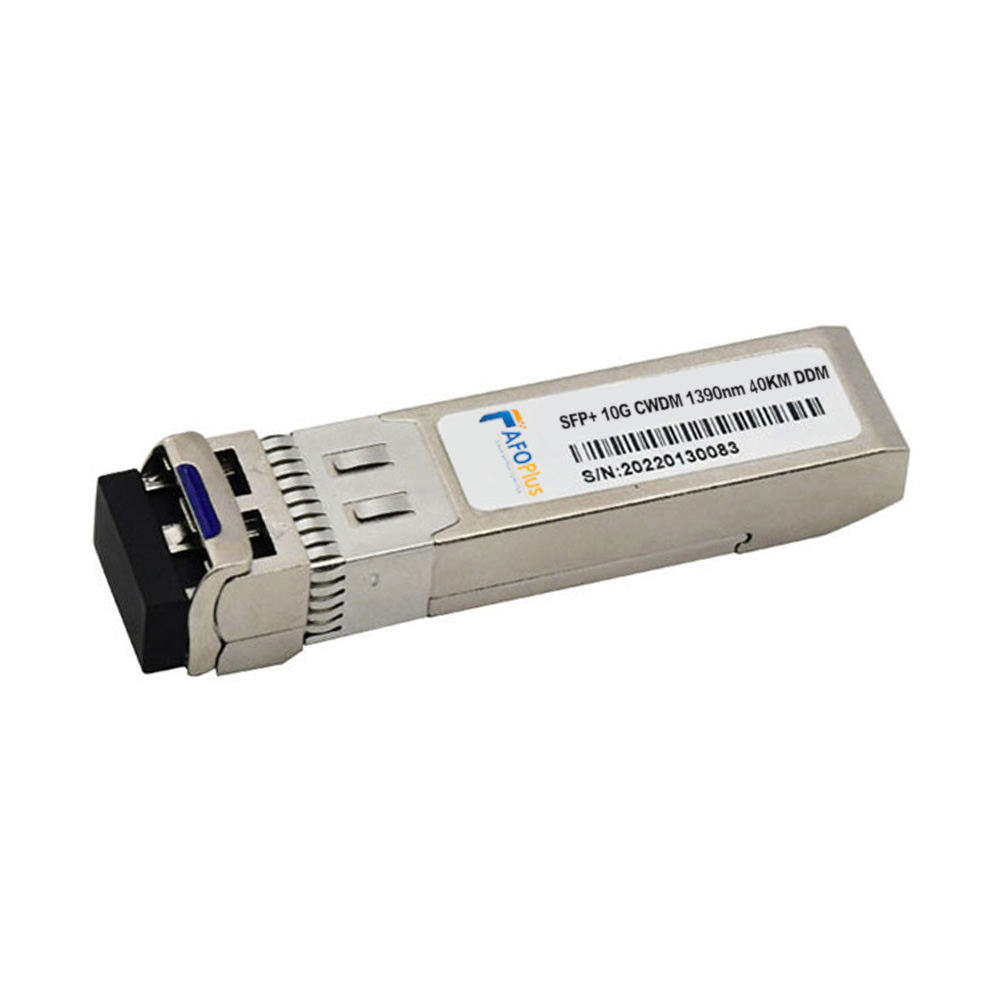

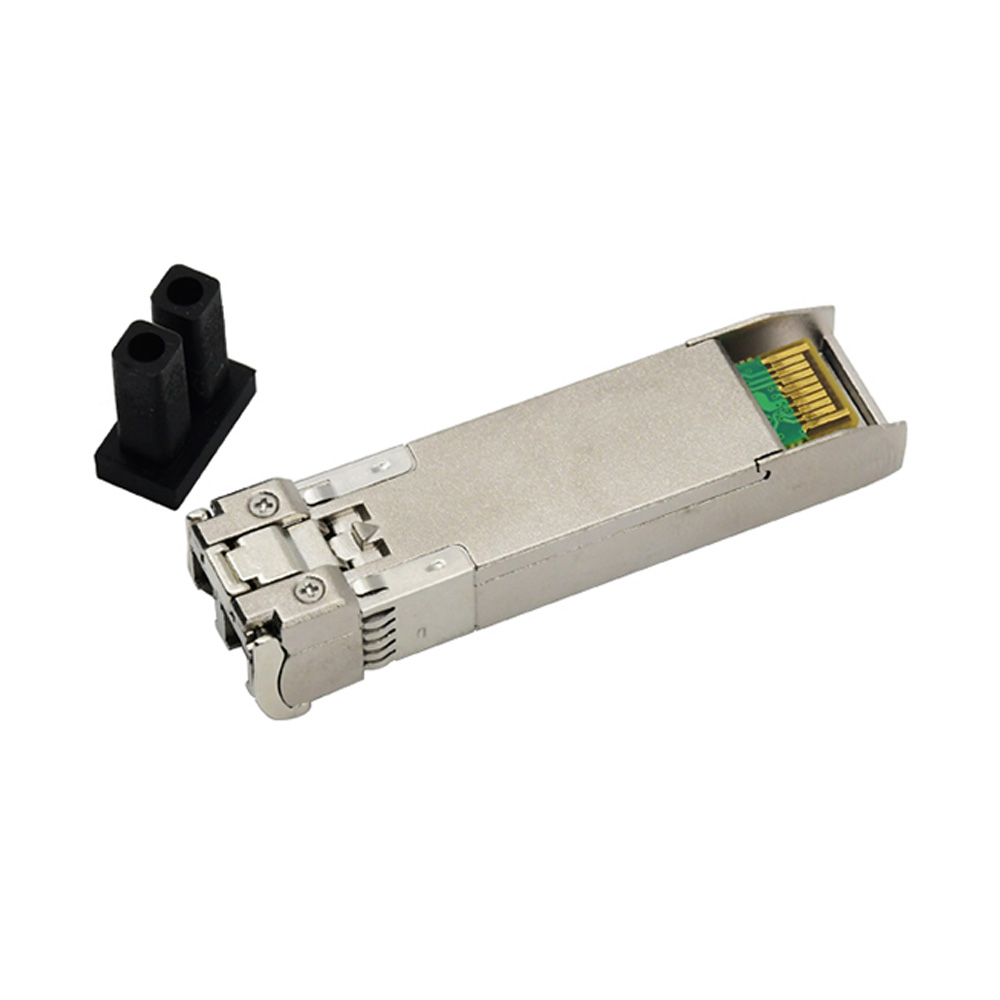

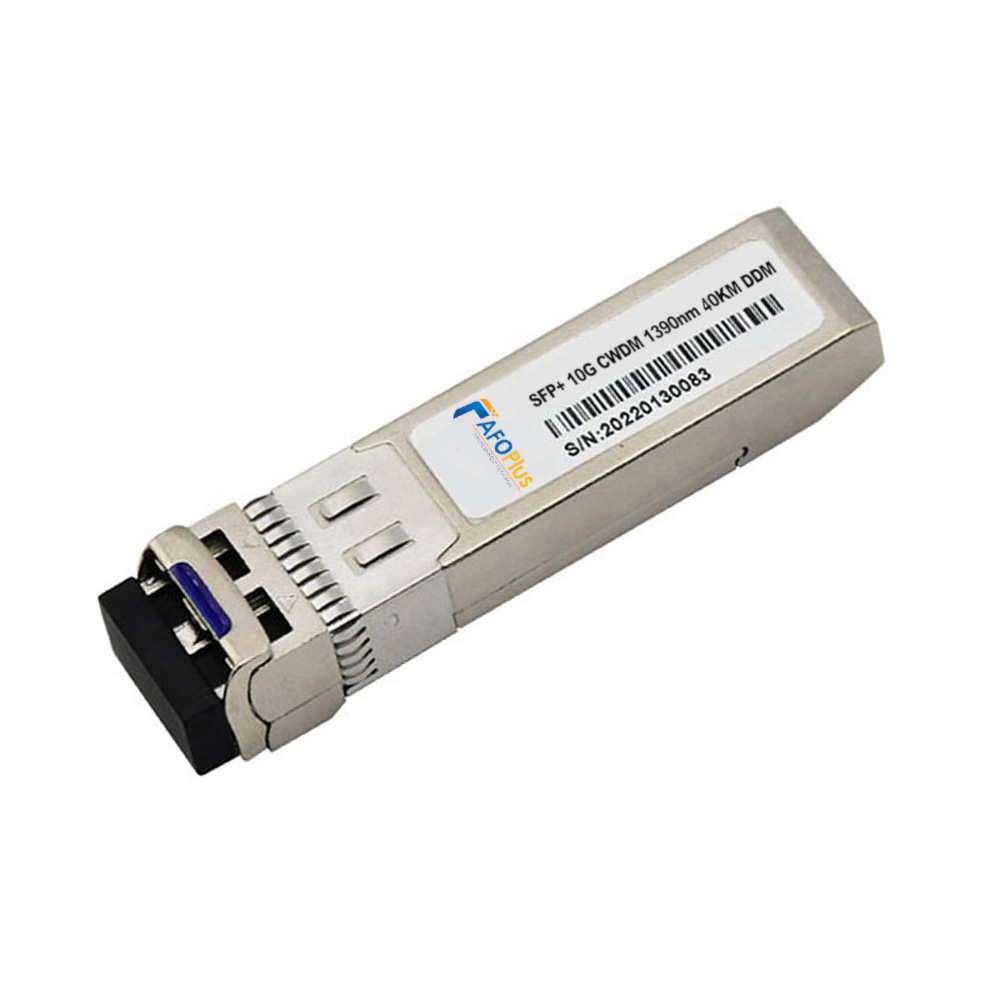

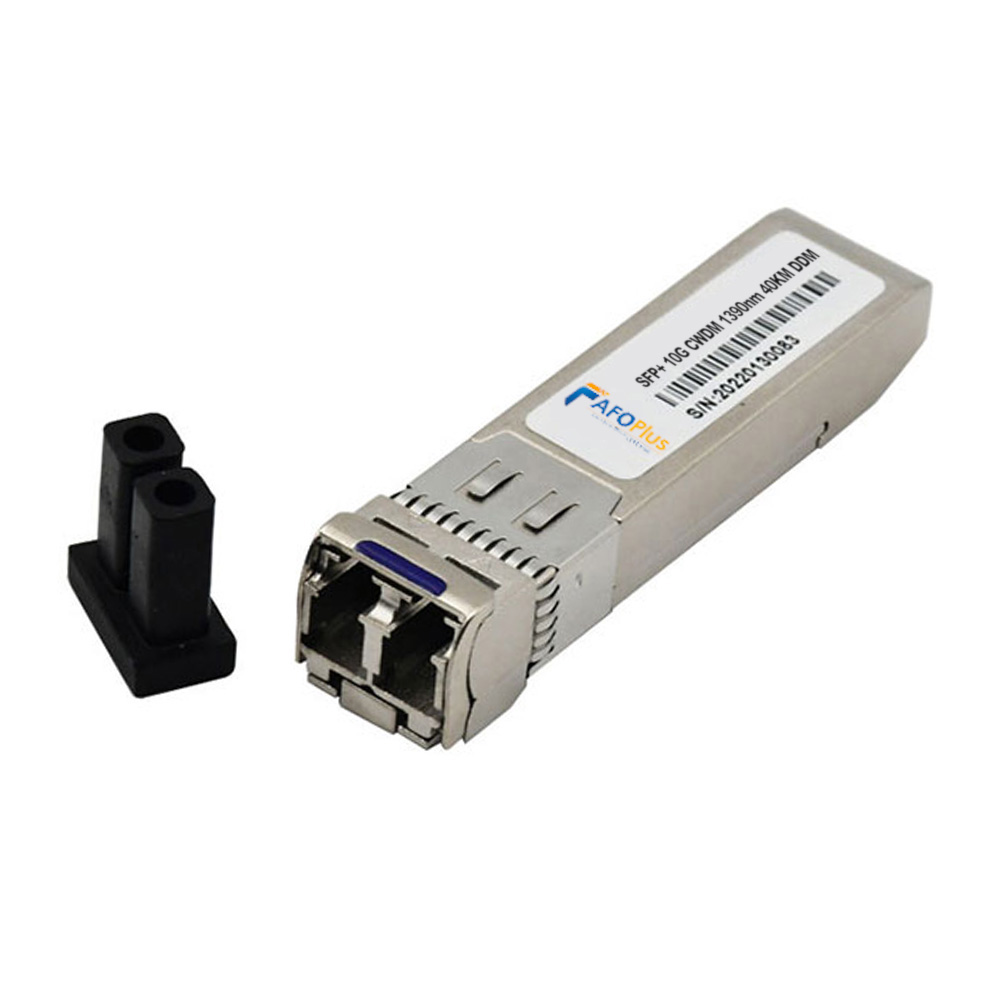

Fiber Optical Transceiver|Optical Module Cisco Compatible CWDM 10G SFP+ 1570nm 40km Duplex LC/UPC Single Mode
$272.93
As an high quality optical module, AFOPLUS's CWDM SFP+ module plays an important role in optical communication. With a 10G data transfer prowess, it can shoulder the demands of today's data-greedy applications. Whether it's orchestrating a high-definition video conference with dozens of participants sharing screen content, or uploading hefty design files in a flash, the 10G SFP+ transceiver furnishes a seamless encounter. Operating within the 1390 - 1610nm range under CWDM, it dispatches signals across 40km distances. The single mode design and duplex LC/UPC interface further fortify its dependability, making it the preferred option for those hankering after stable and high-performance optical connections.
Datas
| Form Factor | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1390-1610nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| TX Power | -1~4dBm | RX Power | -16~0.5dBm |
| Transmitter Type | CWDM DFB | Receiver Sensitivity | <-15dBm |
| Power Consumption | ≤2.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0°C to 70°C(32℉-158℉)
|
| Modulation | NRZ | Protocols | SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652 |
